When you hear the word “foundry,” you might think of a dimly lit, industrial space where molten metal is poured into molds. But what exactly is a foundry, and how does it work? A foundry is a manufacturing facility where metals are cast into specific shapes by melting them and then pouring the liquid metal into a mold, where it cools and solidifies. Foundries have been around for centuries, playing a pivotal role in producing the metal components essential for countless industries. Let’s dive into the details of what happens inside these fascinating factories.
Unlocking the Secrets of Foundries: A Basic Overview
Foundries are specialized facilities designed for the process of casting metal into various shapes and sizes. They take raw materials, such as iron, aluminum, or bronze, and transform them into finished products through the process of melting and molding. This process, called casting, involves several stages, from preparing the metal to creating a mold, and finally, cooling and finishing the cast product. The end products range from large engine blocks to tiny intricate jewelry pieces, proving the versatility of foundries.
Now that we have a basic understanding of what a foundry is, let’s explore the detailed steps involved in the metal casting process.
Crafting Metal Magic: The Step-by-Step Casting Process
The casting process is the heart of a foundry’s operations. It consists of several essential steps, each crucial to producing high-quality metal castings.
-
Pattern Making: The process starts with creating a pattern, which is a replica of the final product. Patterns are typically made from materials like wood, plastic, or metal. This pattern is used to form the mold cavity where the molten metal will be poured.
-
Mold Making: Once the pattern is ready, the next step is to create a mold. Molds can be made from sand, ceramic, or metal, depending on the type of casting process and the material being used. The mold has two main parts: the cope (top half) and the drag (bottom half). These parts enclose the pattern and leave a cavity in the shape of the final product.
-
Melting: In this stage, the chosen metal is melted in a furnace. Depending on the type of foundry, various furnaces such as electric arc furnaces, induction furnaces, or cupolas may be used. The metal must be heated to a precise temperature to ensure it flows properly into the mold.
-

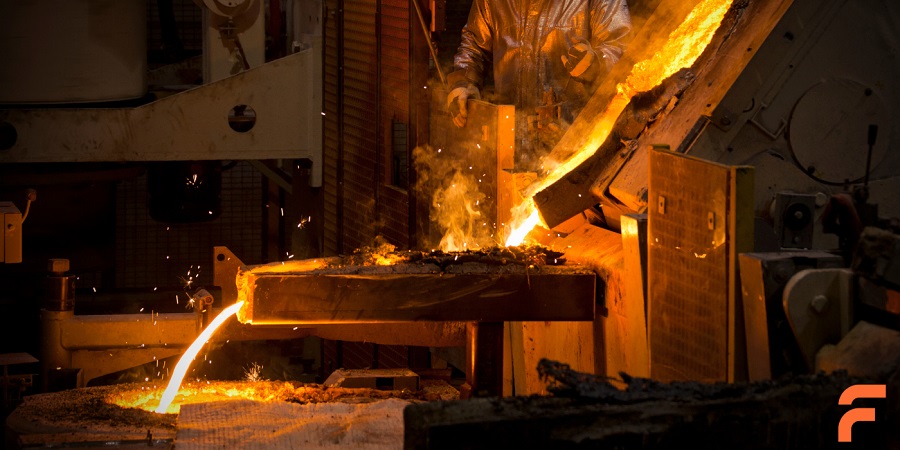

Pouring: Once the metal reaches the desired temperature, it is carefully poured into the mold cavity. This step requires great precision to avoid defects in the final product. The pouring can be done manually or with the help of automated systems.
-
Cooling: After pouring, the metal needs time to cool and solidify within the mold. Cooling rates must be controlled to prevent internal stresses and ensure the structural integrity of the casting.
-
Removal and Finishing: Once the metal has solidified, the mold is broken away to reveal the rough casting. The casting is then cleaned to remove any excess material or imperfections. This process, known as fettling, includes grinding, polishing, and sometimes heat treatment to achieve the desired mechanical properties.
With the casting process now clear, let’s take a closer look at the different types of foundries and how they specialize in various metals and techniques.
Foundry Specialties: Exploring the Different Types of Foundries
Foundries are not one-size-fits-all; they vary based on the type of metals they handle and the processes they use. Here are some common types of foundries:
-
Iron Foundries: Specialize in casting various types of iron, such as gray iron, ductile iron, and malleable iron. These foundries are crucial for industries like automotive and construction.
-
Steel Foundries: Focus on steel casting, which is used for parts that require high strength and durability. Applications include heavy machinery and infrastructure components.
-
Non-Ferrous Foundries: Handle metals like aluminum, copper, and brass. These foundries produce components for industries such as aerospace, electronics, and consumer goods.
-
Precious Metal Foundries: These foundries deal with metals like gold, silver, and platinum. Their products include jewelry and components for electronics and medical devices.
Understanding the different types of foundries helps clarify why certain foundries are better suited for specific applications. Next, we’ll explore the key equipment that makes the casting process possible.
Tools of the Trade: Essential Equipment in a Foundry
Running a foundry requires specialized equipment designed to handle high temperatures and heavy materials. Some of the key equipment includes:
-
Furnaces: Used to melt metals, furnaces come in various types, including electric arc, induction, and cupola furnaces, each suited for different metals and production scales.
-
Molding Machines: These machines automate the mold-making process, ensuring consistency and precision in creating mold cavities.
-
Crucibles: Containers used to hold molten metal during the melting and pouring processes. They are made from materials that can withstand extreme heat without contaminating the metal.
-
Pouring Systems: These include ladles and automated systems that transport molten metal from the furnace to the mold.
-
Cooling Systems: Control the cooling rate of the castings to prevent defects and ensure proper solidification.
-
Finishing Equipment: Grinders, polishers, and sandblasters are used to clean and finish cast products, preparing them for their final use.
Equipped with an understanding of the machinery, it’s time to consider the various applications of cast metals in different industries.
Casting Connections: Real-World Applications of Metal Castings
The versatility of foundries makes them indispensable across various industries. Here are some of the most common applications of cast metals:
-
Automotive Industry: Engine blocks, brake drums, and transmission housings are often cast from iron or aluminum due to their strength and heat resistance.
-
Construction: Steel castings are used in structural components, such as beams and columns, because of their high strength and durability.
-
Aerospace: Lightweight yet strong materials like aluminum and titanium castings are crucial for aircraft components, including turbine blades and structural parts.
-
Electronics: Precious metal castings, like gold and silver, are used in electronic connectors and components for their excellent conductivity and resistance to corrosion.
-
Medical Devices: Precision castings are used to manufacture components like joint replacements and surgical instruments, which require high accuracy and biocompatibility.
With these diverse applications, it’s clear that foundries play a crucial role in modern manufacturing, affecting everything from the cars we drive to the gadgets we use.
The Final Mold: How Foundries Shape Our World
Foundries are at the core of modern manufacturing, transforming raw metals into essential components that power industries worldwide. Understanding the intricacies of the casting process, the various types of foundries, and the specialized equipment used offers a glimpse into the complexities of this ancient yet ever-evolving field. Whether it’s crafting the engine block of your car or the intricate jewelry you wear, foundries play a crucial role in shaping the world around us.
